Garmin GPSMAP 923xsv & VHF 215 AIS Review: The Ultimate Lake Erie Safety Net

When I first got my 2004 Maxum 3100SE, the electronics were… well, they were from 2004. They worked, but they were slow, the screen was dim, and they didn’t talk to each other. For casual trips on a calm day, it was fine. But for anyone who has spent time on Lake Erie, you know that “calm” is a temporary state. As we’ve covered in our Lake Erie Weather & Wave Patterns for Boaters guide, this lake can turn on you in a heartbeat. Between the unpredictable fog, the massive freighters that appear out of nowhere, and the organized chaos of events like Pottahawk, “fine” just doesn’t cut it.

I needed an upgrade. Not just a new GPS, but a complete system that would give me real situational awareness. I needed to bridge the gap between being a “party boater” and a “Great Loop captain.” After a lot of research, I landed on the Garmin GPSMAP 923xsv and the VHF 215 AIS radio. And let me tell you, this combination has been a game-changer.

The "Brains": Garmin GPSMAP 923xsv

The 923xsv is the heart of my new setup. It’s a 9-inch touchscreen chartplotter that is bright, fast, and incredibly powerful. But the real magic is in the “xsv” part of the name. That means it has built-in SideVü, ClearVü, and traditional CHIRP sonar.

For a place like Pottahawk, this is huge. The 923xsv’s high-def sonar is the difference between guessing the bottom is sandy and knowing your prop is safe. With SideVü, I can scan a wide area to the sides of my boat, looking for a clear spot to drop anchor away from submerged logs or rocks. This is especially important when you’re trying to find a good spot in a crowded anchorage, a topic we dive into in our How to Safely Attend Large Boat Raft-Ups guide. With ClearVü, I get a near-photographic image of what’s directly below me. It’s like having underwater eyes.

But the 923xsv isn’t just for finding a good spot to anchor. The processor is lightning fast. When you’re navigating a complex area like the Welland Canal, you’re constantly zooming in and out of the charts. My old unit would lag and stutter. The 923xsv is smooth as silk. It’s a small thing that makes a huge difference when you’re in a tight spot.

The "Ears": Garmin VHF 215 AIS

If the 923xsv is the brains of the operation, the VHF 215 AIS is the ears. And for safety on Lake Erie, this is the star of the show.

The killer feature here is the built-in AIS (Automatic Identification System) receiver. This means the radio can “see” other boats that are transmitting an AIS signal, even if they’re miles away or hidden in fog. And on Lake Erie, that means freighters.

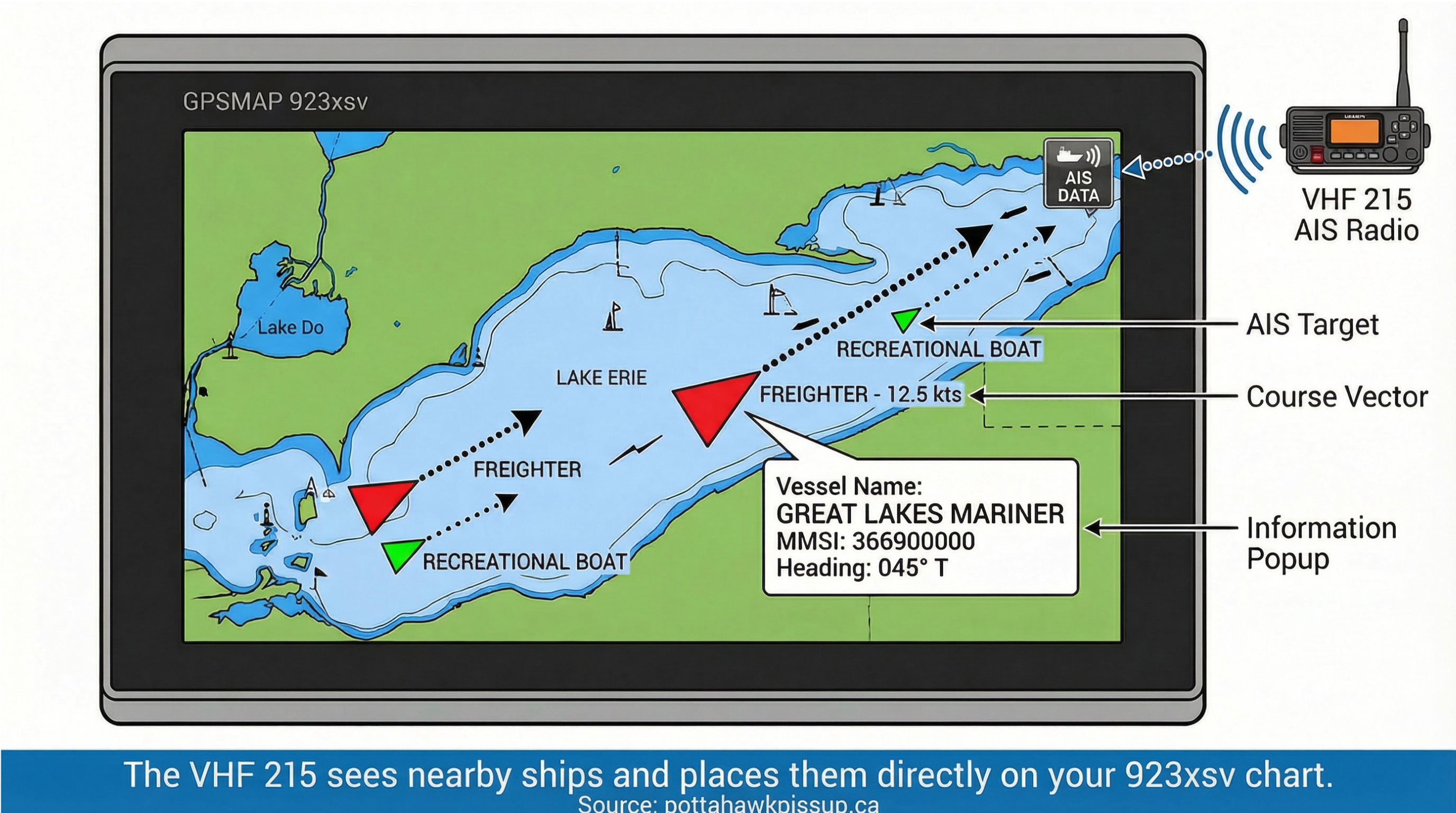

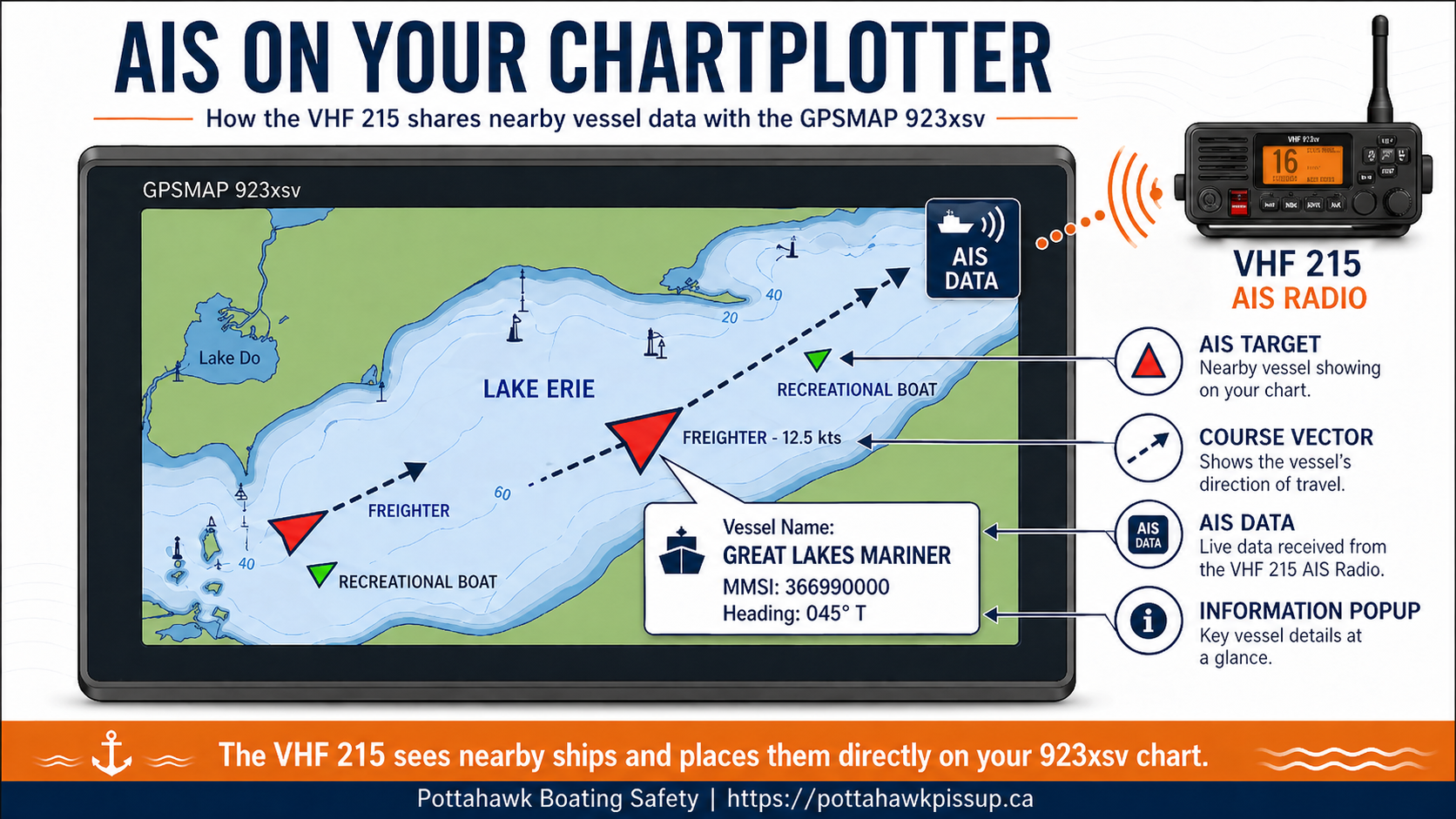

But here’s where the magic happens. Because the VHF 215 is connected to the 923xsv through a NMEA 2000 network, it pushes those AIS targets directly onto my chartplotter. I can see a triangle representing a freighter on my map, moving in real-time. I can tap on it to see its name, speed, and direction. And if I need to, I can call them directly without having to fumble with typing in their MMSI number. This is a massive safety upgrade, and a key piece of equipment we recommend in our Ultimate Boat Packing Checklist.

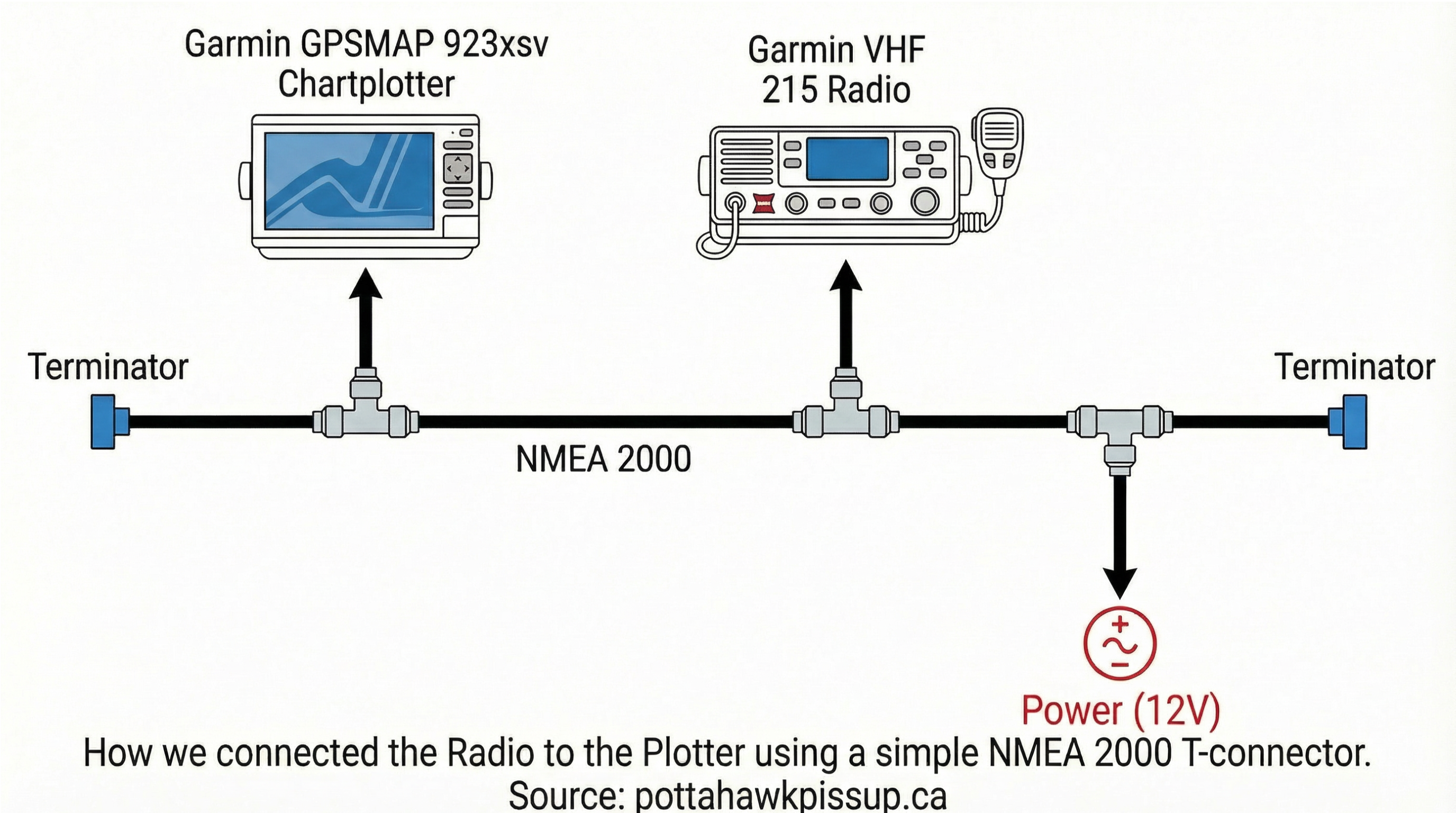

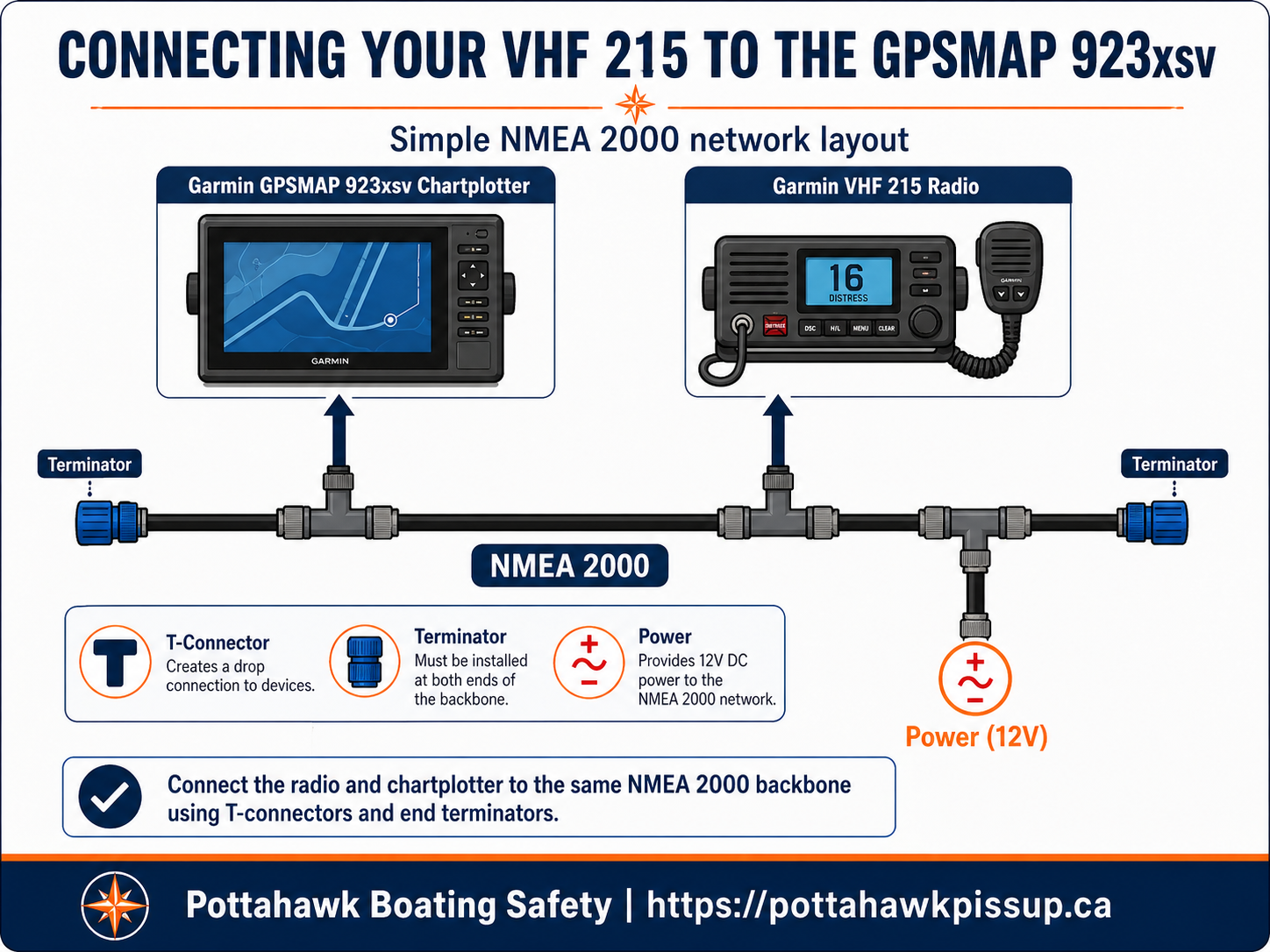

The "Network": NMEA 2000

This is the part that scares a lot of boaters, but it’s actually pretty simple. NMEA 2000 is just a standardized way for marine electronics to talk to each other. It’s a single backbone cable that runs through your boat, and you just plug your devices into it with T-connectors. It’s not two separate tools; it’s one system.

And because they’re connected, you get some amazing features. For example, if a buddy with a DSC-equipped VHF radio calls you, their exact position pops up on your 923xsv screen. Lost your friend at the Pottahawk party? If you both have this setup, their boat shows up as a waypoint on your screen the moment they radio you. This is a huge advantage when dealing with the group dynamics we discuss in Why Group Behavior Changes Boating Decisions.

The Verdict

Upgrading my 2004 Maxum 3100SE with the Garmin GPSMAP 923xsv and VHF 215 AIS was one of the best decisions I’ve made as a boat owner. It’s not just about having new toys; it’s about having a complete system that gives me the confidence to handle whatever Lake Erie throws at me. Whether I’m navigating a crowded anchorage at Pottahawk or dodging freighters in the fog, I have the information I need to make smart, safe decisions. It’s the ultimate Lake Erie safety net, and a critical part of a comprehensive approach to safety that starts with a thorough Pre-Trip Inspection Checklist.

Note: I am not sponsored by Garmin. I bought this gear with my own money for my own boat, and this review is based on my actual experience navigating Lake Erie. I just think it saves lives.
